解決下拉式選單覆蓋圖層的問題

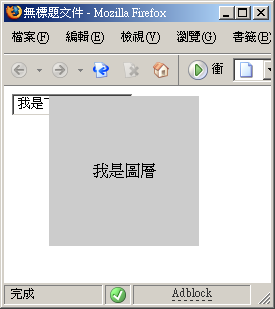

最近遇到的一個問題: IE 上能否解決 <DIV>圖層被 <SELECT>下拉式選單遮住的問題?如下圖:

我透過 Google 大神,找到了下面這篇文章,它解決了這個問題:

Sample for using a DIV IFRAME shim to cover over SELECT Boxes and other windowed controls in IE.

在 IE 上,<SELECT> 標籤屬於視窗化控制元件,因此會蓋在所有圖層的上方。解決的方式是用一個空的 <IFRAME> 標籤,在圖層出現前,先壓在 <SELECT> 的上方,然後再將圖層疊上去。

註:在這篇文章之前有一篇「 How to cover an IE windowed control (Select Box, ActiveX Object, etc.) with a DHTML layer」,不過這篇文章因為被 Spam Attack ,所以會造成瀏覽器無法回應,只能用 Opera 開啟。

總結了裡面的討論,我參考原作者的 JavaScript ,改良出一個通用的 function 。裡面用到了一些特殊的功能,讓 IE 以外的瀏覽器不透過 <IFRAME> 的協助,因為它們並不會有類似的問題。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<style type="text/css">
#container {
position: relative;
left: 50%;
margin-left: -300px;
width: 600px;
}
</style>
<script type="text/javascript">
function showDiv(sDivID, bState) {
    var oDiv = document.getElementById(sDivID);
    /*@cc_on
    @if (@_jscript_version >= 5)
    try {
        var oIframe = document.getElementById('HelpFrame');
        oIframe.scrolling = 'no';
    } catch (e) {
        var oIframe = document.createElement('iframe');
        var oParent = oDiv.parentNode;
        oIframe.id = 'HelpFrame';
        oParent.appendChild(oIframe);
    }
    oIframe.frameborder = 0;
    oIframe.style.position = 'absolute';
    oIframe.style.top = 0;
    oIframe.style.left = 0;
    oIframe.style.display = 'none';
    @end @*/
    if (bState) {
        oDiv.style.display = 'block';
        /*@cc_on
        @if (@_jscript_version >= 5)
        oIframe.style.top = oDiv.style.top;
        oIframe.style.left = oDiv.style.left;
        oIframe.style.zIndex = oDiv.style.zIndex - 1;
        oIframe.style.width = parseInt(oDiv.offsetWidth);
        oIframe.style.height = parseInt(oDiv.offsetHeight);
        oIframe.style.display = 'block';
        @end @*/
    } else {
        /*@cc_on
        @if (@_jscript_version >= 5)
        oIframe.style.display = 'none';
        @end @*/
        oDiv.style.display = 'none';
    }
}
</script>
</head>
<body>
<div id="container">
<form>
<select>
<option>A Select Box is Born ....</option>
</select>
</form>
<br />
<br />
<a href="#" onclick="showDiv('PopupDiv', true); return false;">Click to show DIV.</a> <br />
<br />
<a href="#" onclick="showDiv('PopupDiv', false); return false;">Click to hide DIV.</a>
<div id="PopupDiv" style="position:absolute; top:10px; left:50px; height: 40px; padding:4px; display:none; background-color:#000000; color:#ffffff; z-index:100;"> .... and a DIV can cover it up<br />
through the help of an IFRAME. </div>
</div>
</body>
</html>

執行結果:

有興趣的朋友請自行研究,有使用上的問題也歡迎告知。

補述:如果在 Dreamweaver 已用內建的圖層隱藏功能的話,直接把 showDiv 函式加在後面即可。例如:

1
2
onmouseover="MM_showHideLayers('Layer1','','show'); showDiv('Layer1', true);"
onmouseout="MM_showHideLayers('Layer1','','hide'); showDiv('Layer1', false);"
